Hierarchical Clustering Analysis - MASE

In this notebook, we will use multiple adjacency spectral embedding (MASE) instead of omnibus embedding to obtain a low dimensional vector representation of vertices in our correlation matrices

import pandas as pd
import graspologic as gp
import seaborn as sns
import hyppo
import matplotlib.pyplot as plt
import numpy as np

import plotly.graph_objects as go
import matplotlib.cm

from sklearn.preprocessing import LabelEncoder
%matplotlib inline

import plotly.io as pio
pio.renderers.default="png"

# ## Read the brain region information
# t = pd.read_excel("../data/raw/CHASSSYMM3AtlasLegends.xlsx", engine='openpyxl')

# pd.concat([t, cluster_label_df], axis=1).to_csv("CHASSSYMM3AtlasLegends.csv", index=False)

# out = pd.concat([node_labels, cluster_label_df], axis=1)

# out.to_csv("./out.csv")

## Read the data

key = pd.read_csv('../data/processed/key.csv')
data = pd.read_csv('../data/processed/mouses-volumes.csv')

data.set_index(key.DWI, inplace=True)

genotypes = ['APOE22', 'APOE33', 'APOE44']

gen_animals = {genotype: None for genotype in genotypes}

for genotype in genotypes:
    gen_animals[genotype] = key.loc[key['Genotype'] == genotype]['DWI'].tolist()

vol_dat = {genotype: [] for genotype in genotypes}

for genotype in genotypes:
    vol_dat[genotype] = data.loc[gen_animals[genotype]].to_numpy()

## Compute correlations
cor_dat = {genotype: gp.utils.symmetrize(np.corrcoef(dat, rowvar=False)) for (genotype, dat) in vol_dat.items()}

## Node hierarchical label data
node_labels = pd.read_csv("../data/processed/node_label_dictionary.csv")

node_labels

	Structure	Abbreviation	Hemisphere	Level_1	Level_2	Level_3	Level_4	Subdivisions_7	index	index2	clusfound	Subdivisions_7_nowm	Hemisphere_abbrev	Level_1_abbrev
0	Cingulate_Cortex_Area_24a	A24a	Left	1_forebrain	1_secondary_prosencephalon	1_isocortex	2_cingulate_cortex	1_isocortex	1	1.0	0	1_isocortex	L	FB
1	Cingulate_Cortex_Area_24a_prime	A24aPrime	Left	1_forebrain	1_secondary_prosencephalon	1_isocortex	2_cingulate_cortex	1_isocortex	2	2.0	0	1_isocortex	L	FB
2	Cingulate_Cortex_Area_24b	A24b	Left	1_forebrain	1_secondary_prosencephalon	1_isocortex	2_cingulate_cortex	1_isocortex	3	3.0	0	1_isocortex	L	FB
3	Cingulate_Cortex_Area_24b_prime	A24bPrime	Left	1_forebrain	1_secondary_prosencephalon	1_isocortex	2_cingulate_cortex	1_isocortex	4	4.0	0	1_isocortex	L	FB
4	Cingulate_Cortex_Area_29a	A29a	Left	1_forebrain	1_secondary_prosencephalon	1_isocortex	2_cingulate_cortex	1_isocortex	5	5.0	0	1_isocortex	L	FB
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
327	IntermediateReticularNucleus	IRN.1	Right	3_hindbrain	2_pontine_hindbrain	NaN	axial_hindbrain_white_matter	6_hindbrain	328	1162.0	0	6_hindbrain	R	HB
328	PosteriorDorsal_ParaventricularMedialParvicell...	PHD_PaMP_Post_and_LatHy.1	Right	1_forebrain	1_secondary_prosencephalon	8_rostral_secondary_prosencephalon	5_hypothalamus	4_diencephalon	329	1163.0	0	4_diencephalon	R	FB
329	Prerubral_Forel	PR_p3Tg_L.1	Right	1_forebrain	2_diencephalon	p2_and_p3	17_thalamus	4_diencephalon	330	1164.0	0	4_diencephalon	R	FB
330	PVG_of_Hypothalamus	PVG.1	Right	1_forebrain	1_secondary_prosencephalon	8_rostral_secondary_prosencephalon	5_hypothalamus	4_diencephalon	331	1165.0	0	4_diencephalon	R	FB
331	Basal Lateral Amygdala	BLA.1	Right	1_forebrain	1_secondary_prosencephalon	6_subpallium	8_pallial_and_subpallial_amygdala	2_pallium	332	1166.0	0	2_pallium	R	FB

332 rows × 14 columns

## Plot to make sure nothing is wrong

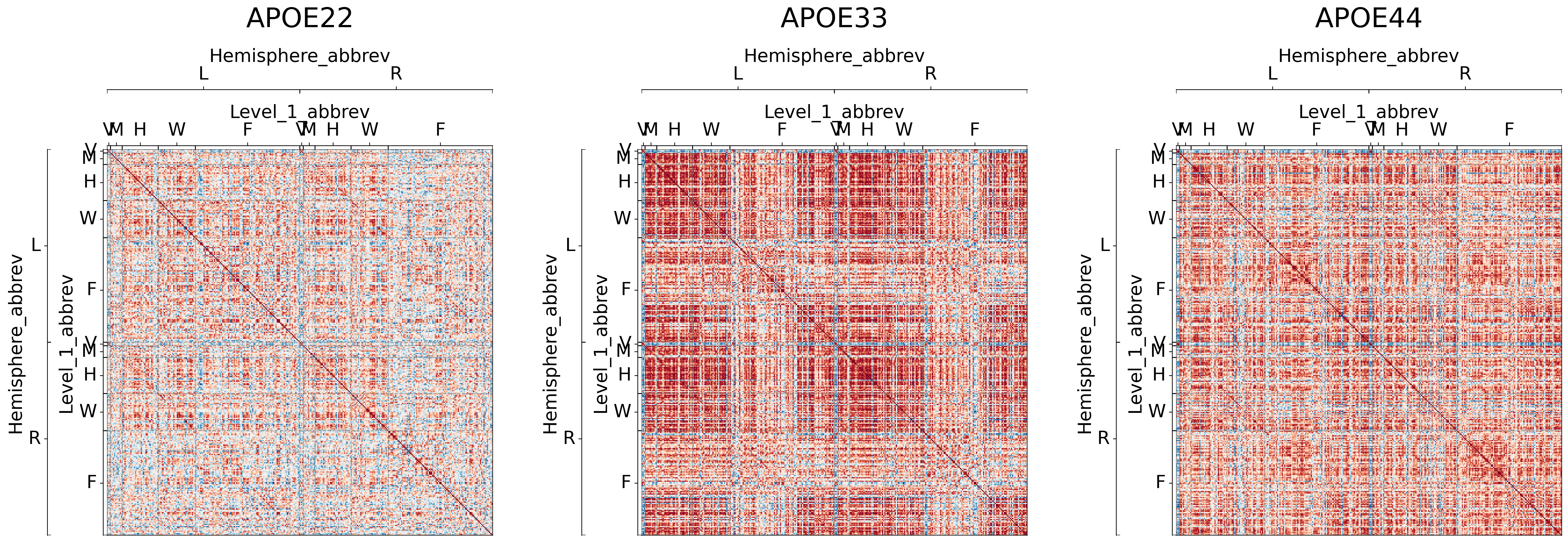

fig, ax = plt.subplots(
    ncols=3,
    figsize=(30, 10),
    #constrained_layout=True,
    dpi=300,
    gridspec_kw=dict(width_ratios=[1, 1, 1])
)


for (i, genotype) in enumerate(cor_dat.keys()):
    gp.plot.adjplot(
        cor_dat[genotype],
        ax=ax[i],
        vmin=-1,
        vmax=1,
        meta=node_labels,
        group=['Hemisphere_abbrev', 'Level_1_abbrev'],
    )
    ax[i].set_title(f"{genotype}", pad=135, size=30)


#fig.tight_layout(pad=3.0)

Embed the data simultaneously using Multiple Adjacency Spectral Embedding (MASE)

The purpose of MASE is to obtain a low dimensional representation of the three correlation matrices such that the embedded correlation matrices can be compared to each other in a meaningful way [Arroyo et al., 2021]. Unlike omnibus embedding, MASE provides a common vertex representation across all correlation matrices. One can view this as a factoring out of common structures that are shared across all correlation matrices. This common representation of vertices provide a low dimensional vector per region of the brain, resulting in a \(322\times d\) matrix per genotype where \(d\) is the “embedding dimension” and \(d << 332\).

We will use the embeddings in order to perform hierchical clustering [Athey et al., 2019, Lyzinski et al., 2014, Priebe et al., 2019].

mase = gp.embed.MultipleASE()
Vhat = mase.fit_transform([corr for _, corr in cor_dat.items()])

Xhats = []

for score in mase.scores_:
    u, d, v = np.linalg.svd(score)
    Xhat = Vhat @ u @ np.diag(np.sqrt(d))

    Xhats.append(Xhat)

Perform hierarchical clustering

First we concatenate the embeddings resulting in a matrix with size \(332 \times 3d\). We will iteratively divide the regions into two clusters. For example, we divide the \(332\) regions into two clusters, and each resulting cluster will be divided into two more clusters, etc. The clustering algorithm used at each division is Gaussian mixture modeling.

The clustering algorithm will tell us which regions should be grouped together, and subsequently forms our “subgraphs” given by the clusterings.

Vhat.shape

(332, 2)

cluster = gp.cluster.DivisiveCluster(max_level=3)

cluster_labels = cluster.fit_predict(Vhat, fcluster=True)

cluster_label_df = pd.DataFrame(cluster_labels, columns=["cluster_level_1", "cluster_level_2", "cluster_level_3"])

Plotting the cluster labeling along with apriori labels using Sankey diagrams

Sankey diagrams tell us which regions or subregions belong to which clusters.

def count_groups(label_matrix):
    levels = label_matrix.shape[1] - 1
    d = []

    for level in range(levels):
        upper_cluster_ids = np.unique(label_matrix[:, level])

        for upper_cluster_id in upper_cluster_ids:
            lower_cluster_ids, counts = np.unique(
                label_matrix[label_matrix[:, level] == upper_cluster_id][:, level + 1], return_counts=True
            )

            for idx, lower_cluster_id in enumerate(lower_cluster_ids):
                if upper_cluster_id == lower_cluster_id:
                    lower_cluster_id = None
                d.append((upper_cluster_id, lower_cluster_id, counts[idx]))

    d = np.array(d)

    source = d[:, 0]
    target = d[:, 1]
    value = d[:, 2]

    return source, target, value

def append_apriori_labels(apriori_labels, cluster_matrix):
    encoder = LabelEncoder()
    apriori_labels_encoded = encoder.fit_transform(apriori_labels)
    apriori_labels_encoded = apriori_labels_encoded.reshape(-1, 1)

    # Increase the original cluster_matrix labels
    cluster_matrix_ = cluster_matrix + np.max(apriori_labels_encoded) + 1

    out = np.hstack([apriori_labels_encoded, cluster_matrix_])

    return out, list(encoder.classes_)

hemispheric_clusters, encoded_labels = append_apriori_labels(node_labels.Hemisphere, cluster_labels)

source, target, value = count_groups(hemispheric_clusters)

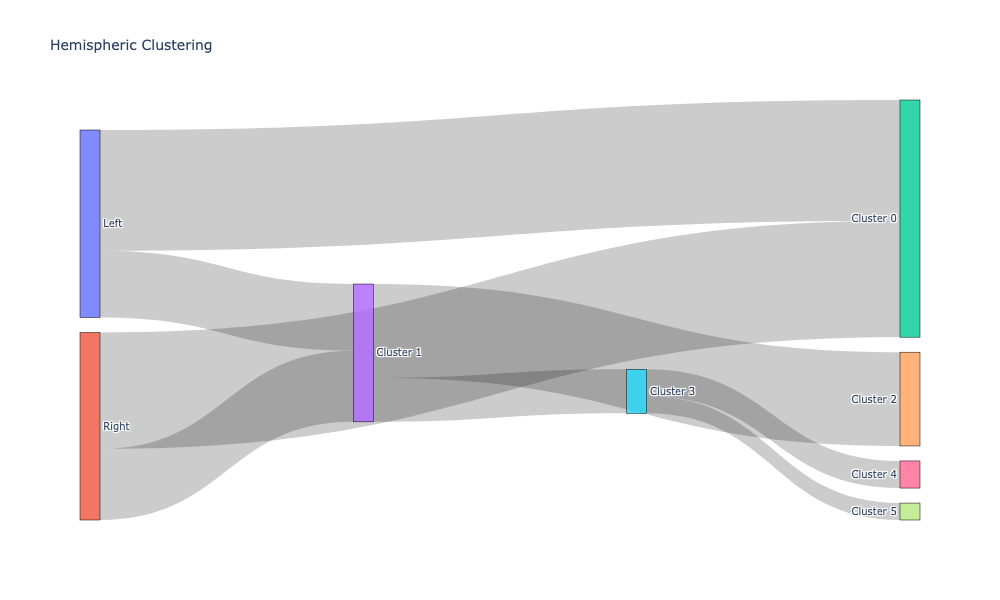

fig = go.Figure(data=[go.Sankey(
    node = dict(
      pad = 15,
      thickness = 20,
      line = dict(color = "black", width = 0.5),
      label = encoded_labels + [f"Cluster {i}" for i in range(np.max(hemispheric_clusters))]
    ),
    link = dict(
      source = source,
      target = target,
      value = value
  ))])

fig.update_layout(title_text="Hemispheric Clustering", font_size=10)
fig.show(dpi=300, width=1000, height=600)

level_1_clusters, encoded_labels = append_apriori_labels(node_labels.Level_1, cluster_labels)

source, target, value = count_groups(level_1_clusters)

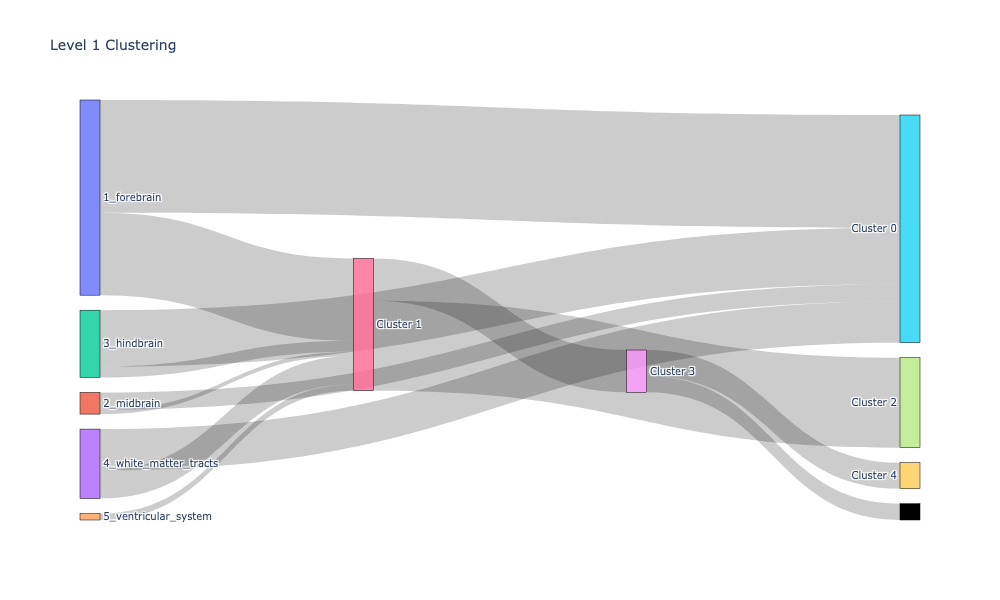

fig = go.Figure(data=[go.Sankey(
    node = dict(
      pad = 15,
      thickness = 20,
      line = dict(color = "black", width = 0.5),
      label = encoded_labels + [f"Cluster {i}" for i in range(np.max(level_1_clusters[0]))],
    ),
    link = dict(
      source = source,
      target = target,
      value = value
  ))])

fig.update_layout(title_text="Level 1 Clustering", font_size=10)
fig.show(dpi=300, width=1000, height=600)

pd.concat([node_labels, cluster_label_df], axis=1).to_csv("../outs/mase_clustering.csv", index=False)

Visualizing different clustering levels using heatmaps

Heatmaps can qualitatively tell us if there are any underlying structures within the clusters.

cl = pd.DataFrame(cluster_labels, columns=[f"Cluster_{i}" for i in range(1, 4)])

meta = pd.concat([node_labels, cl], axis=1)

meta.head()

	Structure	Abbreviation	Hemisphere	Level_1	Level_2	Level_3	Level_4	Subdivisions_7	index	index2	clusfound	Subdivisions_7_nowm	Hemisphere_abbrev	Level_1_abbrev	Cluster_1	Cluster_2	Cluster_3
0	Cingulate_Cortex_Area_24a	A24a	Left	1_forebrain	1_secondary_prosencephalon	1_isocortex	2_cingulate_cortex	1_isocortex	1	1.0	0	1_isocortex	L	F	0	0	0
1	Cingulate_Cortex_Area_24a_prime	A24aPrime	Left	1_forebrain	1_secondary_prosencephalon	1_isocortex	2_cingulate_cortex	1_isocortex	2	2.0	0	1_isocortex	L	F	1	2	2
2	Cingulate_Cortex_Area_24b	A24b	Left	1_forebrain	1_secondary_prosencephalon	1_isocortex	2_cingulate_cortex	1_isocortex	3	3.0	0	1_isocortex	L	F	1	2	2
3	Cingulate_Cortex_Area_24b_prime	A24bPrime	Left	1_forebrain	1_secondary_prosencephalon	1_isocortex	2_cingulate_cortex	1_isocortex	4	4.0	0	1_isocortex	L	F	1	3	5
4	Cingulate_Cortex_Area_29a	A29a	Left	1_forebrain	1_secondary_prosencephalon	1_isocortex	2_cingulate_cortex	1_isocortex	5	5.0	0	1_isocortex	L	F	0	0	0

## Plot to make sure nothing is wrong

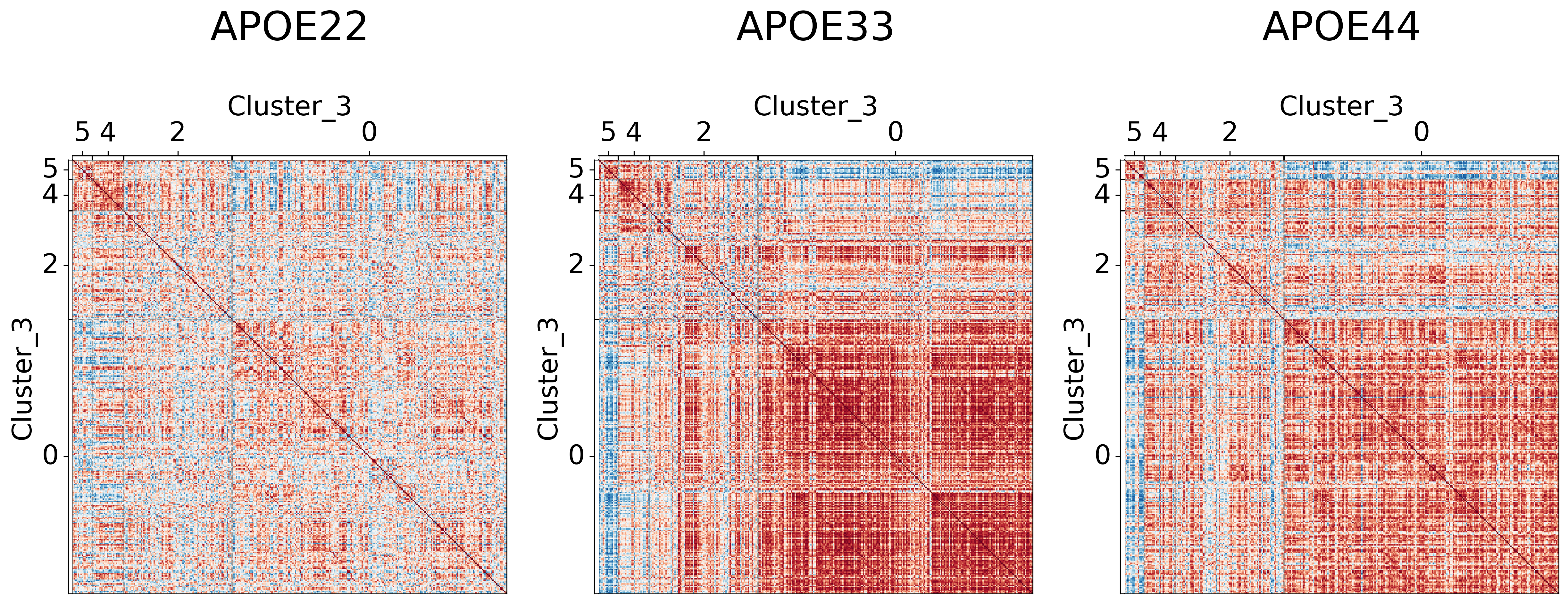

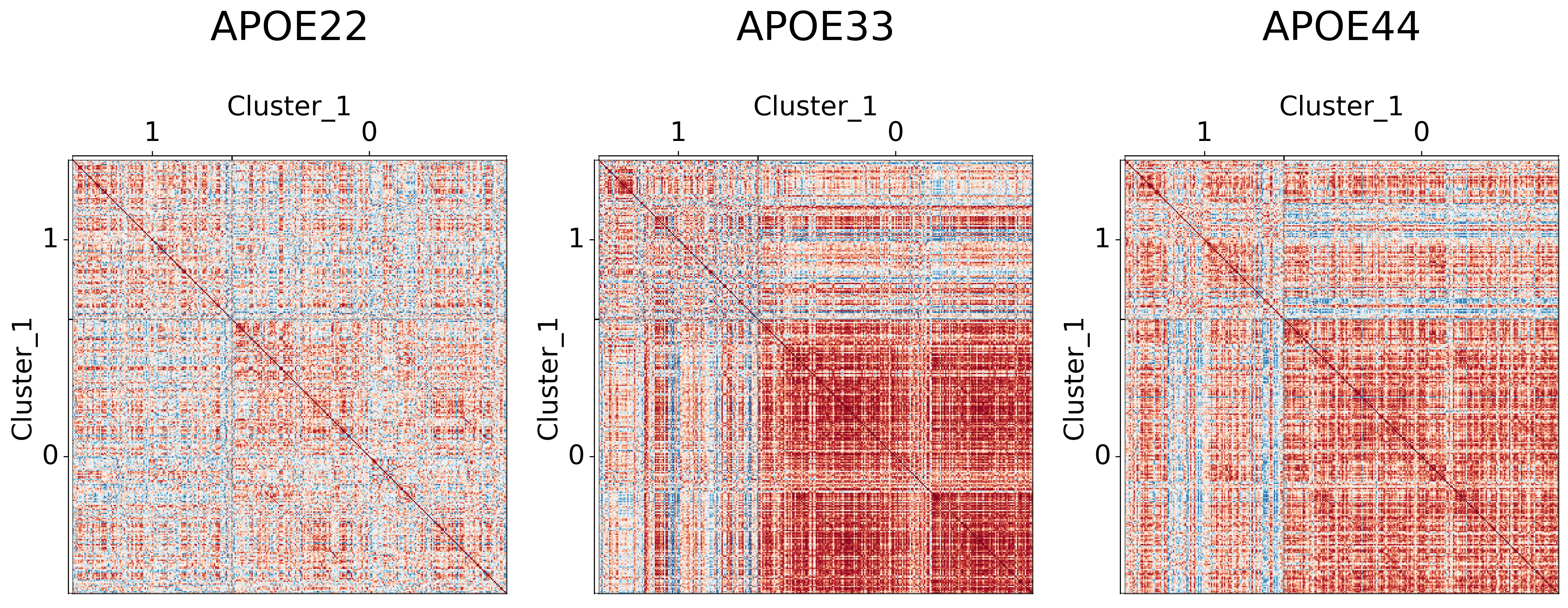

for l in range(3):
    fig, ax = plt.subplots(
        ncols=3,
        figsize=(20, 10),
        #constrained_layout=True,
        dpi=300,
        gridspec_kw=dict(width_ratios=[1, 1, 1])
    )

    for (i, genotype) in enumerate(cor_dat.keys()):
        gp.plot.adjplot(
            cor_dat[genotype],
            ax=ax[i],
            vmin=-1,
            vmax=1,
            meta=meta,
            group=[f'Cluster_{l+1}'],
        )
        ax[i].set_title(f"{genotype}", pad=90, size=30)

    #fig.savefig(f"./figures/2022-02-02-multigraph-clustering-level-{l + 1}.png", bbox_inches='tight')

It seems like cluster structures are predominantly driven by the large correlations in the APOE3 genotype

Testing for significantly different clusters at various levels

Again, the clusters tell us which regions should be grouped together. Hence, each cluster forms our subgraph. For each subgraph, we test whether the distribution of the latent positions (aka the embeddings) are significantly different. Specifically we test

()\[\begin{align} H_0:& \qquad F_{APOE2}=F_{APOE3}=F_{APOE4}\\ H_A:& \qquad \text{At least one pair of distributions is different} \end{align}\]

using a 3-sample distance correlation. We correct for multiple hypothesis testing via Holm-Bonferroni correction.

def holm_bonferroni(pvals, alpha=0.05):
    sorted_pvals = np.sort(pvals)

    m = len(pvals)
    corrected_alpha = alpha / m

    for i in range(m):
        if sorted_pvals[i] < corrected_alpha:
            if (m + 1 - (i + 2)) == 0:
                return alpha / m
            corrected_alpha = alpha / (m + 1 - (i + 2))
        else:
            break

    return corrected_alpha

res = []

for level in range(cluster_labels.shape[1]):
    level_labels = cluster_labels[:, level]
    uniques = np.unique(level_labels)

    for cluster in uniques:
        idx = (level_labels == cluster)

        data = [Xhat[idx] for Xhat in Xhats]

        ksample = hyppo.ksample.KSample("dcorr")
        stat, pval = ksample.test(*data)

        res.append((level, cluster, pval))

ksample_df = pd.DataFrame(res, columns=["Cluster_level", "Cluster_id", "pval"])

corrected_alpha = holm_bonferroni(ksample_df.pval)

ksample_df["significant"] = ksample_df.pval < corrected_alpha

Ksample testing results

We see that most clusters are significantly different.

ksample_df

	Cluster_level	Cluster_id	pval	significant
0	0	0	1.774613e-51	True
1	0	1	1.149383e-12	True
2	1	0	1.774613e-51	True
3	1	2	2.072957e-07	True
4	1	3	1.937743e-12	True
5	2	0	1.774613e-51	True
6	2	2	2.072957e-07	True
7	2	4	1.825486e-12	True
8	2	5	5.191775e-07	True

Testing for differences in pairwise subgraph covariances

The test above tells us whether a pair, or all, genotypes are different. For example, a significant result may mean that APOE2 and APOE3 are different. However, it is also possible that APOE2, APOE3, and APOE4 are all different. To figure out which pairs are different, we do a post-hoc pairwise test. That is, for each cluster (aka subgraph), we test whether each pair of genotypes are different. Specifically,

()\[\begin{align} H_0:& \qquad F_{i}=F_{j}\\ H_A:& \qquad F_i \neq F_j \end{align}\]

where \(i, j\) denotes a particular genotype. Again, we use distance correlation with Holm-Bonferroni correction.

genotypes = ['APOE22', 'APOE33', 'APOE44']

ksample = hyppo.ksample.KSample("dcorr")

res = []

cluster_df = ksample_df[ksample_df.significant == True]

for _, row in cluster_df.iterrows():
    cluster_id = row.Cluster_id
    idx = cluster_labels[:, row.Cluster_level] == cluster_id

    cluster_Xhat = [Xhat[idx] for Xhat in Xhats]

    for i, g in enumerate(genotypes):
        for j, h in enumerate(genotypes):
            if i < j:
                continue
            if g == h:
                #res.append([cluster_id, g, h, 1])
                continue
            else:
                ksample = hyppo.ksample.KSample("dcorr")

                _, pval = ksample.test(cluster_Xhat[i], cluster_Xhat[j])
                res.append([row.Cluster_level, cluster_id, g, h, pval])

res = pd.DataFrame(res, columns = ["cluster_level", "cluster_id", "Genotype_1", "Genotype_2", "pval"])
res["log(pval)"] = np.log(res.pval)

corrected_alpha = holm_bonferroni(res.pval)

res["significant"] = res.pval < corrected_alpha

from scipy.spatial.distance import squareform

dfs = [res[0:6], res[9:15], res[-6:]]

res = pd.concat(dfs, axis=0)

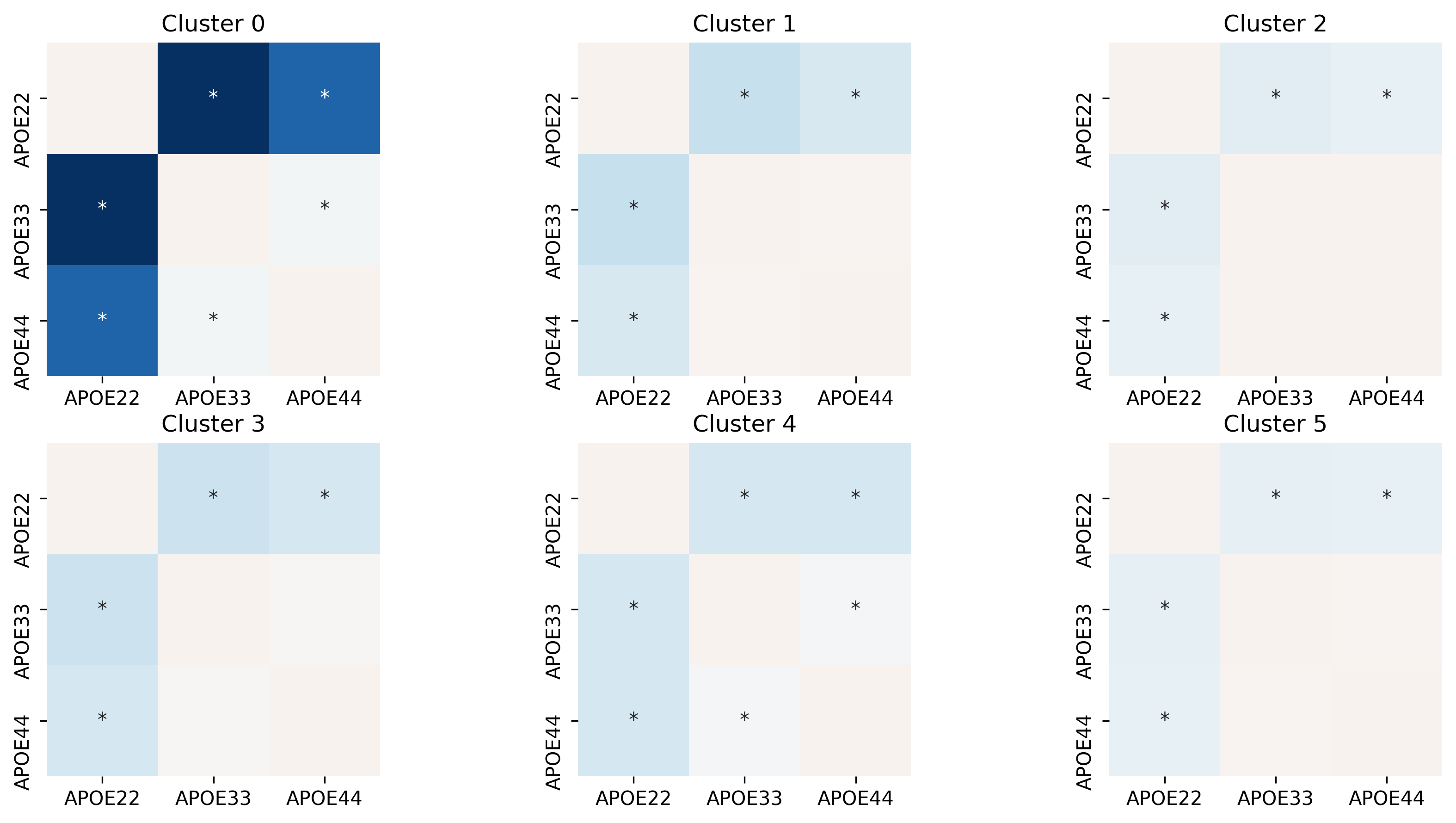

fig, ax = plt.subplots(ncols = 3, nrows = 2, figsize=(14, 7), dpi=300)

ax = ax.ravel()

for i, cluster_id in enumerate(np.unique(res.cluster_id)):
    tmp = res[res.cluster_id == cluster_id]
    data = squareform(tmp["log(pval)"])
    sig_labels = squareform(["*" if sig is True else "" for sig in tmp.significant])
    sns.heatmap(
        data,
        annot=sig_labels,
        fmt = '',
        vmax=0,
        vmin=np.min(res["log(pval)"]),
        xticklabels=genotypes,
        yticklabels=genotypes,
        center = np.log(corrected_alpha),
        cmap="RdBu_r", square = True, ax = ax[i], cbar=False)
    ax[i].set_title(f"Cluster {cluster_id}")

#out = pd.concat([node_labels, cluster_label_df], axis=1)

#out.to_csv("./out.csv")
