### import modules
import numpy as np
import seaborn as sns
import matplotlib.pyplot as plt
import pandas as pd
from sklearn.metrics import adjusted_rand_score, accuracy_score
from graspologic.utils import remap_labels
from utils import calculate_dissim, calculate_dissim_unmatched, cluster_dissim, construct_df, plot_clustering, laplacian_dissim
import random
from myst_nb import glue

Unmatched Networks

We will run the same clustering algorithms (Agglomerative clustering, GMM, and KMeans) on the dissimilarity matrices generated from each kernel. Similarly, we compare the ARI values for each clustering algorithm for each kernel.

Note that by default, we only show the result for Agglomerative clustering on the dissimilarity matrix constructed by the Edge weight kernel, but all results can be expanded for viewing.

Load Data

# HIDE CELL
from pathlib import Path

graphs_all = np.zeros((225, 200, 200))
species_list = []

npy_files = Path('../mami_data/conn').glob('*')
for i, file in enumerate(npy_files):
    graphs_all[i] = np.load(file)
    filestr = str(file).split('/')[-1]
    filestr = filestr.split('.')[0]
    species_list.append(filestr)

random.seed(3)

# construct labels based on taxonomy orders
info_df = pd.read_csv('../mami_data/info.csv')
filenames = info_df.pop("Filename").to_list()
orders_all = info_df.pop("Order").to_list()

order_mapper = {}
for i, filename in enumerate(filenames):
    if orders_all[i] == 'Artiodactyla':
        orders_all[i] = 'Cetartiodactyla'
    order_mapper[filename] = orders_all[i]

labels_all = list(map(order_mapper.get, species_list))

# get subset of labels, graphs
orders = ['Chiroptera', 'Primates']
#orders = ['Chiroptera', 'Rodentia', 'Cetartiodactyla', 'Carnivora', 'Perissodactyla', 'Primates']
ind_ch = []
ind_pr = []
labels = []

for i, label in enumerate(labels_all):
    if label == 'Chiroptera':
        #labels.append(label)
        ind_ch.append(i)
    elif label == 'Primates':
        #labels.append(label)
        ind_pr.append(i)

ind_ch_samp = random.sample(ind_ch, len(ind_ch)//2)
ind_pr_samp = random.sample(ind_pr, len(ind_pr)//2)

ind = ind_ch_samp + ind_pr_samp
ind.sort()
graphs = graphs_all[ind]
labels = list(np.array(labels_all)[ind])

mapper = {}

for i, label in enumerate(set(labels)):
    mapper[label] = i
y = list(map(mapper.get, labels))

print(len(labels))
38

Agglomerative Clustering

Here we use agglomerative clustering to cluster the graphs directly on the dissimilarity matrix, and the calculated linkage matrix and clusters are visualized with a heatmap below.

For each kernel, we report the accuracy score, the number of correct predictions divided by the total number of samples, and the adjusted rand index.

Density

# HIDE CELL
# calculate dissimilarity matrix
scaled_density_dissim = calculate_dissim(graphs, method="density", norm=None, normalize=True)

# cluster dissimilarity matrix
density_linkage_matrix, density_pred = cluster_dissim(scaled_density_dissim, y, method="agg", n_components=2)

# calculate accuracy and ARI
density_pred = remap_labels(y, density_pred)
density_agg_score = accuracy_score(y, density_pred)
density_agg_ari = adjusted_rand_score(y, density_pred)

print(f"Accuracy: {density_agg_score}")
print(f"ARI: {density_agg_ari}")

# plot clustered dissimilarity matrix
plot_clustering(labels, 'agg', scaled_density_dissim, density_linkage_matrix)
Accuracy: 0.8157894736842105
ARI: 0.37900307341596956
<seaborn.matrix.ClusterGrid at 0x7fd192ff9220>
_images/mami_clustering_5_2.png

Average Edge Weight

# HIDE CELL
# calculate dissimilarity matrix
scaled_avgedgeweight_dissim = calculate_dissim(graphs, method="avgedgeweight", norm=None, normalize=True)

# cluster dissimilarity matrix
avgedgeweight_linkage_matrix, avgedgeweight_pred = cluster_dissim(scaled_avgedgeweight_dissim, y, method="agg", n_components=2)

# calculate accuracy and ARI
avgedgeweight_pred = remap_labels(y, avgedgeweight_pred)
avgedgeweight_agg_score = accuracy_score(y, avgedgeweight_pred)
avgedgeweight_agg_ari = adjusted_rand_score(y, avgedgeweight_pred)

print(f"Accuracy: {avgedgeweight_agg_score}")
print(f"ARI: {avgedgeweight_agg_ari}")

# plot clustered dissimilarity matrix
plot_clustering(labels, 'agg', scaled_avgedgeweight_dissim, avgedgeweight_linkage_matrix)
Accuracy: 0.6052631578947368
ARI: 0.003844400359796444
<seaborn.matrix.ClusterGrid at 0x7fd182a7d520>

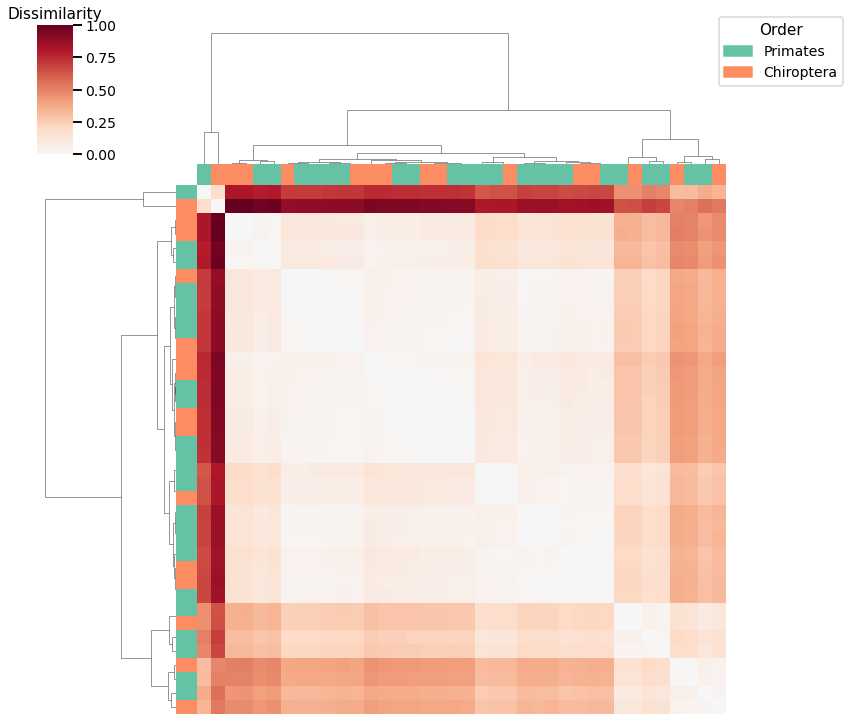

_images/mami_clustering_7_2.png

Average of Adjacency Matrix

# HIDE CELL
# calculate dissimilarity matrix
scaled_avgadjmat_dissim = calculate_dissim(graphs, method="avgadjmatrix", norm=None, normalize=True)

# cluster dissimilarity matrix
avgadjmat_linkage_matrix, avgadjmat_pred = cluster_dissim(scaled_avgadjmat_dissim, y, method="agg", n_components=2)

# calculate accuracy and ARI
avgadjmat_pred = remap_labels(y, avgadjmat_pred)
avgadjmat_agg_score = accuracy_score(y, avgadjmat_pred)
avgadjmat_agg_ari = adjusted_rand_score(y, avgadjmat_pred)

print(f"Accuracy: {avgadjmat_agg_score}")
print(f"ARI: {avgadjmat_agg_ari}")

# plot clustered dissimilarity matrix
plot_clustering(labels, 'agg', scaled_avgadjmat_dissim, avgadjmat_linkage_matrix)
Accuracy: 0.8157894736842105
ARI: 0.37900307341596956
<seaborn.matrix.ClusterGrid at 0x7fd1a33358e0>

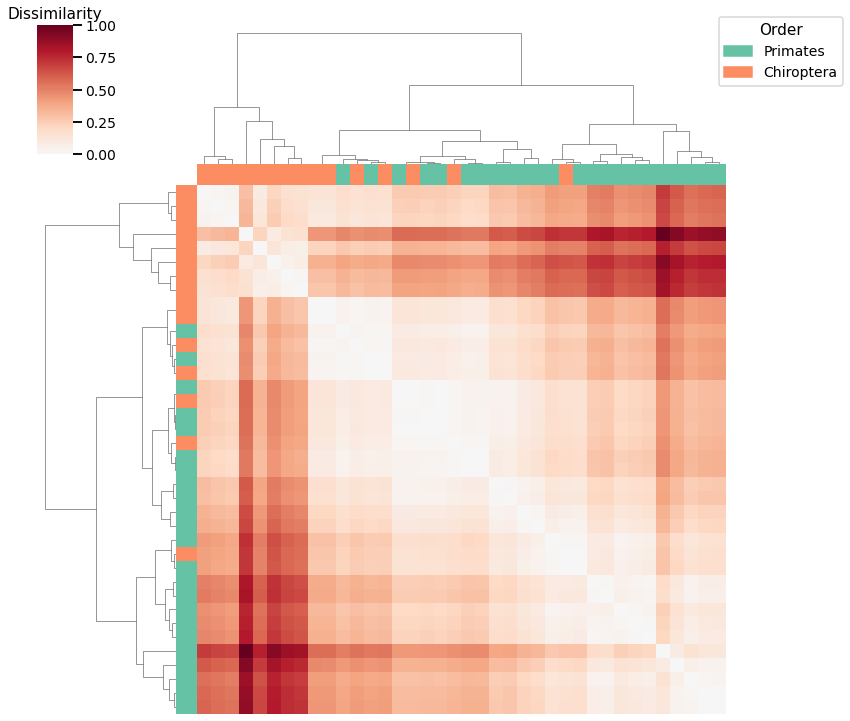

_images/mami_clustering_9_2.png

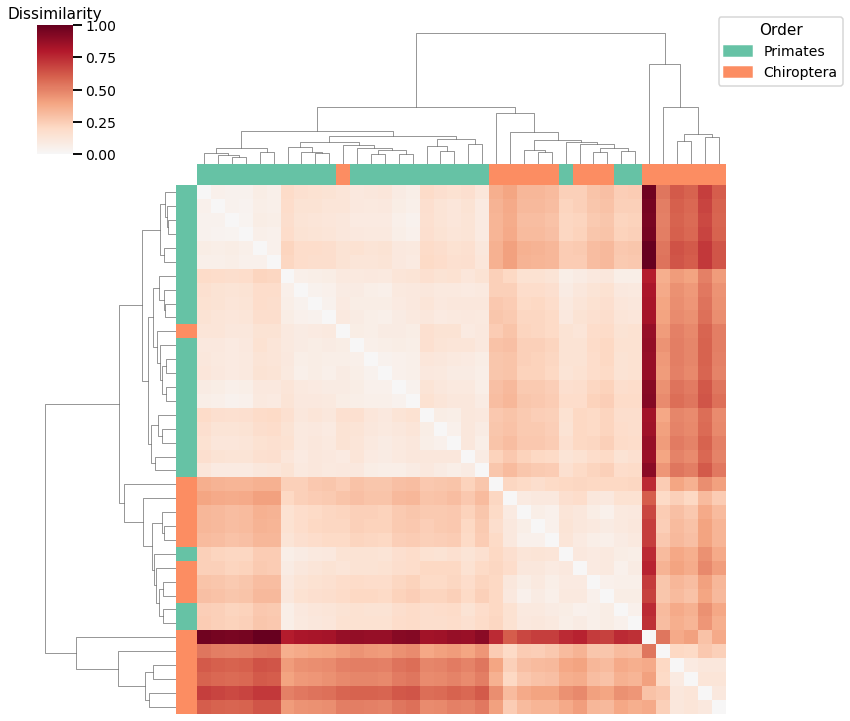

Laplacian Spectral Distance

# HIDE CELL
# calculate dissimilarity matrix
scaled_lap_dissim = laplacian_dissim(graphs, transform='pass-to-ranks', metric='l2', normalize=True)

# cluster dissimilarity matrix
lap_linkage_matrix, lap_pred = cluster_dissim(scaled_lap_dissim, y, method="agg", n_components=2)

# calculate accuracy and ARI
lap_pred = remap_labels(y, lap_pred)
lap_agg_score = accuracy_score(y, lap_pred)
lap_agg_ari = adjusted_rand_score(y, lap_pred)

print(f"Accuracy: {lap_agg_score}")
print(f"ARI: {lap_agg_ari}")

# plot clustered dissimilarity matrix
plot_clustering(labels, 'agg', scaled_lap_dissim, lap_linkage_matrix)
Accuracy: 0.7631578947368421
ARI: 0.25118454399647394
<seaborn.matrix.ClusterGrid at 0x7fd150167340>
_images/mami_clustering_11_2.png

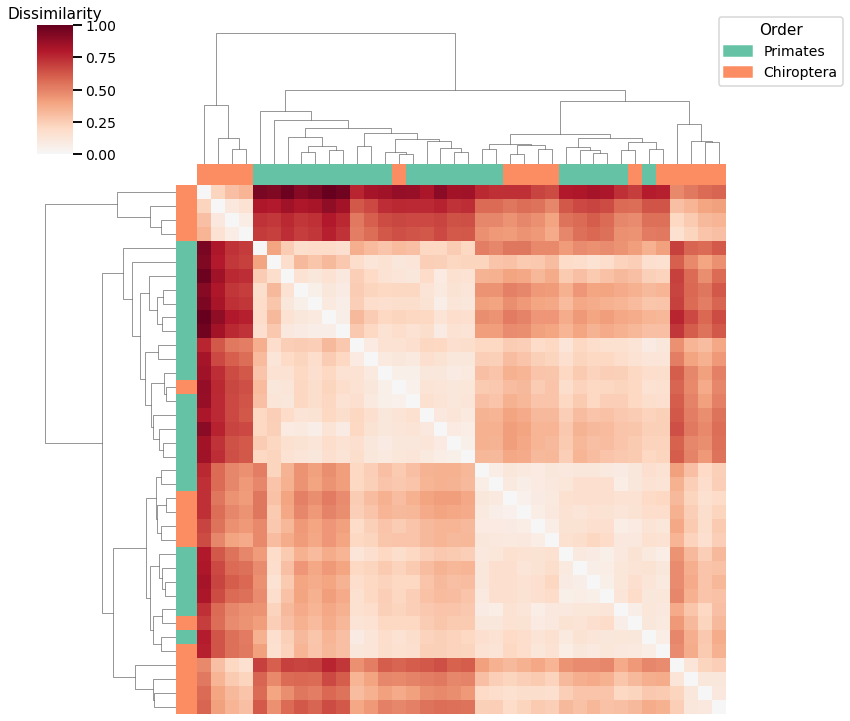

Node Degree

# HIDE CELL
# calculate dissimilarity matrix
scaled_nodedeg_dissim = calculate_dissim_unmatched(graphs, method="degree", normalize=True)

# cluster dissimilarity matrix
nodedeg_linkage_matrix, nodedeg_pred = cluster_dissim(scaled_nodedeg_dissim, y, method="agg", n_components=2)

# calculate accuracy and ARI
nodedeg_pred = remap_labels(y, nodedeg_pred)
nodedeg_agg_score = accuracy_score(y, nodedeg_pred)
nodedeg_agg_ari = adjusted_rand_score(y, nodedeg_pred)

print(f"Accuracy: {nodedeg_agg_score}")
print(f"ARI: {nodedeg_agg_ari}")

# plot clustered dissimilarity matrix
plot_clustering(labels, 'agg', scaled_nodedeg_dissim, nodedeg_linkage_matrix)
Accuracy: 0.7105263157894737
ARI: 0.14536047449274056
<seaborn.matrix.ClusterGrid at 0x7fd150200040>
_images/mami_clustering_13_2.png

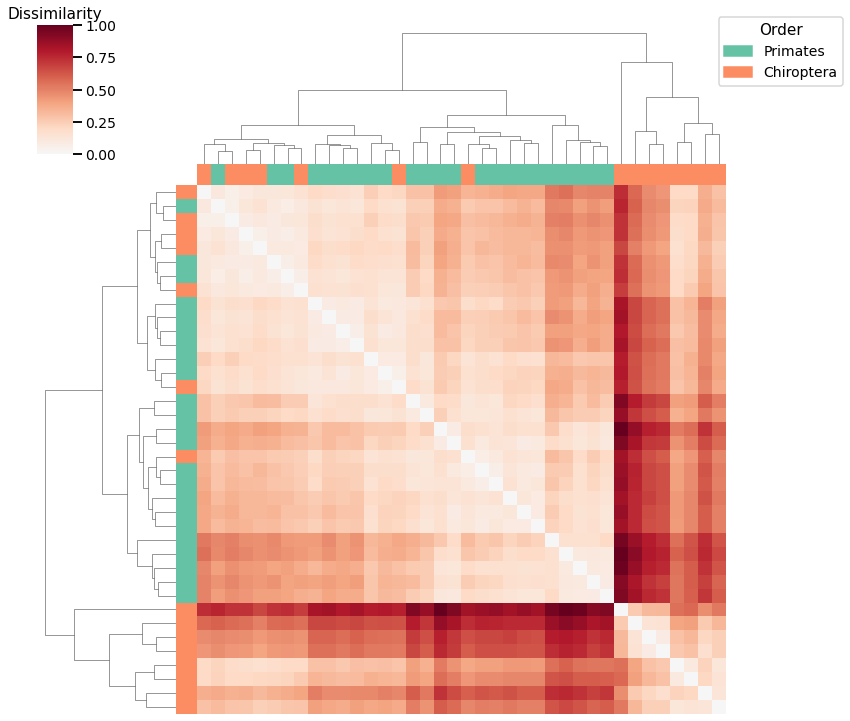

Node Strength

# HIDE CELL
# calculate dissimilarity matrix
scaled_nodestr_dissim = calculate_dissim_unmatched(graphs, method="strength", normalize=True)

# cluster dissimilarity matrix
nodestr_linkage_matrix, nodestr_pred = cluster_dissim(scaled_nodestr_dissim, y, method="agg", n_components=2)

# calculate accuracy and ARI
nodestr_pred = remap_labels(y, nodestr_pred)
nodestr_agg_score = accuracy_score(y, nodestr_pred)
nodestr_agg_ari = adjusted_rand_score(y, nodestr_pred)

print(f"Accuracy: {nodestr_agg_score}")
print(f"ARI: {nodestr_agg_ari}")

# plot clustered dissimilarity matrix
plot_clustering(labels, 'agg', scaled_nodestr_dissim, nodestr_linkage_matrix)
Accuracy: 0.8157894736842105
ARI: 0.37900307341596956
<seaborn.matrix.ClusterGrid at 0x7fd160abfeb0>
_images/mami_clustering_15_2.png

Edge Weight

# HIDE CODE
# calculate dissimilarity matrix
scaled_edgeweight_dissim = calculate_dissim_unmatched(graphs, method="edgeweight", normalize=True)

# cluster dissimilarity matrix
edgeweight_linkage_matrix, edgeweight_pred = cluster_dissim(scaled_edgeweight_dissim, y, method="agg", n_components=2)

# calculate accuracy and ARI
edgeweight_pred = remap_labels(y, edgeweight_pred)
edgeweight_agg_score = accuracy_score(y, edgeweight_pred)
edgeweight_agg_ari = adjusted_rand_score(y, edgeweight_pred)

print(f"Accuracy: {edgeweight_agg_score}")
print(f"ARI: {edgeweight_agg_ari}")

# plot clustered dissimilarity matrix
plot_clustering(labels, 'agg', scaled_edgeweight_dissim, edgeweight_linkage_matrix)
Accuracy: 0.6842105263157895
ARI: 0.10071340713407134
<seaborn.matrix.ClusterGrid at 0x7fd1405f8700>

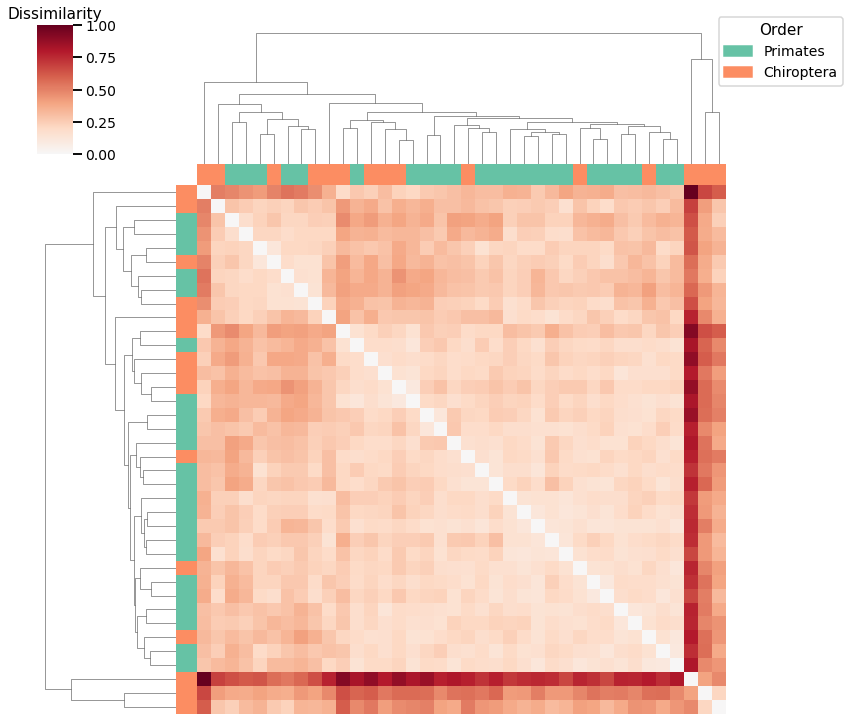

_images/mami_clustering_17_2.png

Latent Distribution Test

# HIDE CELL
from graspologic.inference import latent_distribution_test
from graspologic.align import SeedlessProcrustes
from graspologic.plot import heatmap
from graspologic.embed import AdjacencySpectralEmbed
from graspologic.utils import largest_connected_component
from tqdm import tqdm
import warnings
warnings.filterwarnings("ignore")

ase_graphs = []
for i, graph in enumerate(graphs):
    lcc_graph = largest_connected_component(graph)
    ase_graph = AdjacencySpectralEmbed(n_components=4).fit_transform(lcc_graph)
    ase_graphs.append(ase_graph)

# calculate alignments
latent_dissim = np.zeros((len(ase_graphs), len(ase_graphs)))
for j in tqdm(range(0, len(ase_graphs) - 1)):
    for i in range(j+1, len(ase_graphs)):
        aligner = SeedlessProcrustes()
        graph1 = aligner.fit_transform(ase_graphs[i], ase_graphs[j])
        statistic, _, _ = latent_distribution_test(graph1, ase_graphs[j], test='mgc', metric='euclidean', \
            n_bootstraps=0, align_type=None, input_graph=False)
        latent_dissim[i, j] = statistic

scaled_latent_dissim = latent_dissim / np.max(latent_dissim)
scaled_latent_dissim = scaled_latent_dissim + scaled_latent_dissim.T

# cluster dissimilarity matrix
scaled_latent_dissim[scaled_latent_dissim < 0] = 0
latent_linkage_matrix, latent_pred = cluster_dissim(scaled_latent_dissim, y, method="agg", n_components=2)

# calculate accuracy and ARI
latent_pred = remap_labels(y, latent_pred)
latent_agg_score = accuracy_score(y, latent_pred)
latent_agg_ari = adjusted_rand_score(y, latent_pred)

print(f"Accuracy: {latent_agg_score}")
print(f"ARI: {latent_agg_ari}")

# plot clustered dissimilarity matrix
mami_latent_agg_fig = plot_clustering(labels, 'agg', scaled_latent_dissim, latent_linkage_matrix)

#glue("mami_latent_agg", mami_latent_agg_fig, display=False)
Accuracy: 0.7368421052631579
ARI: 0.19552068007193069

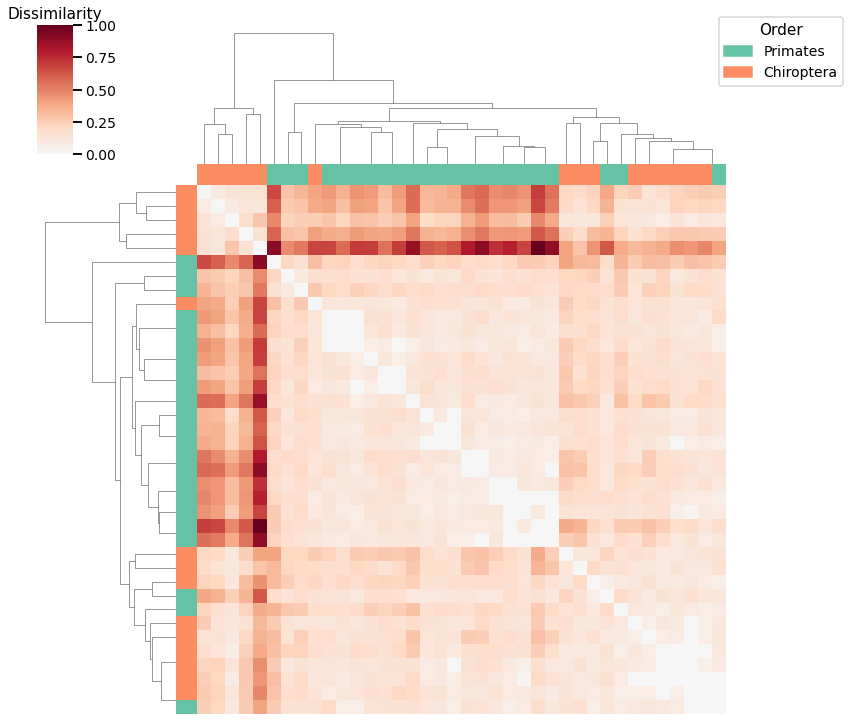

_images/mami_clustering_19_2.png

GMM

We use classical multidimensional scaling to embed the dissimilarity matrices into a 2-dimensional space, then we use GMM to cluster these points. We assign the number of components to be 4 since there are 4 genotypes, and the clusters are visualized with a scattermap below. The colors indicate the true genotypes, and the shapes (O or X) indicate whether or not the predictions are correct.

For each kernel, we report the accuracy score, the number of correct predictions divided by the total number of samples, and the adjusted rand index.

Density

# HIDE CELL
# cluster dissimilarity matrix
density_gm_embedding, density_gm_pred = cluster_dissim(scaled_density_dissim, y, method='gmm', n_components=2)
density_gm, density_gm_pred = construct_df(density_gm_embedding, labels, y, density_gm_pred)

# calculate accuracy and ARI
density_gm_score = accuracy_score(y, density_gm_pred)
density_gm_ari = adjusted_rand_score(y, density_gm_pred)

print(f"Accuracy: {density_gm_score}")
print(f"ARI: {density_gm_ari}")

# plot clustering
plot_clustering(labels, 'gmm', data=density_gm)
Accuracy: 0.7368421052631579
ARI: 0.19552068007193069
<AxesSubplot:xlabel='CMDS Dimension 1', ylabel='CMDS Dimension 2'>

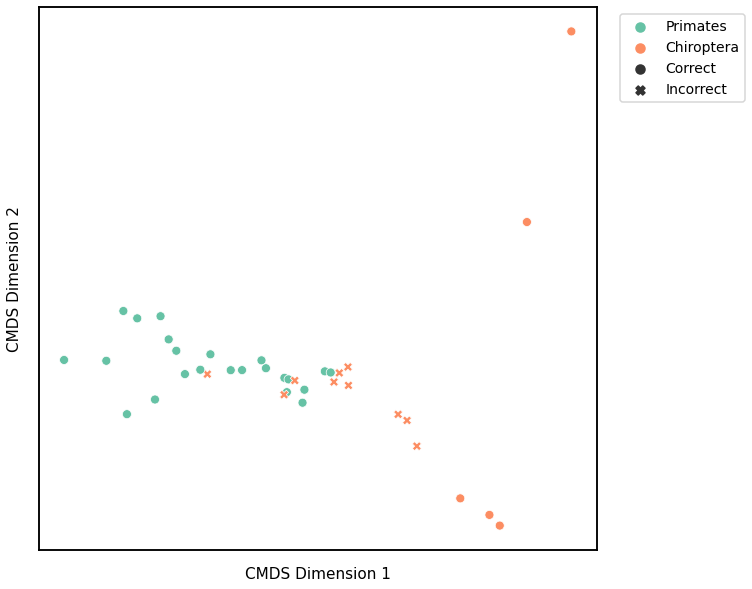

_images/mami_clustering_22_2.png

Average Edge Weight

# HIDE CELL
# cluster dissimilarity matrix
avgedgeweight_gm_embedding, avgedgeweight_gm_pred = cluster_dissim(scaled_avgedgeweight_dissim, y, method='gmm', n_components=2)
avgedgeweight_gm, avgedgeweight_gm_pred = construct_df(avgedgeweight_gm_embedding, labels, y, avgedgeweight_gm_pred)

# calculate accuracy and ARI
avgedgeweight_gm_score = accuracy_score(y, avgedgeweight_gm_pred)
avgedgeweight_gm_ari = adjusted_rand_score(y, avgedgeweight_gm_pred)

print(f"Accuracy: {avgedgeweight_gm_score}")
print(f"ARI: {avgedgeweight_gm_ari}")

# plot clustering
plot_clustering(labels, 'gmm', data=avgedgeweight_gm)
Accuracy: 0.5526315789473685
ARI: -0.01948207575911445
<AxesSubplot:xlabel='CMDS Dimension 1', ylabel='CMDS Dimension 2'>
_images/mami_clustering_24_2.png

Average of the Adjacency Matrix

# HIDE CELL
# cluster dissimilarity matrix
avgadjmat_gm_embedding, avgadjmat_gm_pred = cluster_dissim(scaled_avgadjmat_dissim, y, method="gmm", n_components=2)
avgadjmat_gm, avgadjmat_gm_pred = construct_df(avgadjmat_gm_embedding, labels, y, avgadjmat_gm_pred)

# calculate accuracy and ARI
avgadjmat_gm_score = accuracy_score(y, avgadjmat_gm_pred)
avgadjmat_gm_ari = adjusted_rand_score(y, avgadjmat_gm_pred)

print(f"Accuracy: {avgadjmat_gm_score}")
print(f"ARI: {avgadjmat_gm_ari}")

# plot clustering
plot_clustering(labels, 'gmm', data=avgadjmat_gm)
Accuracy: 0.7368421052631579

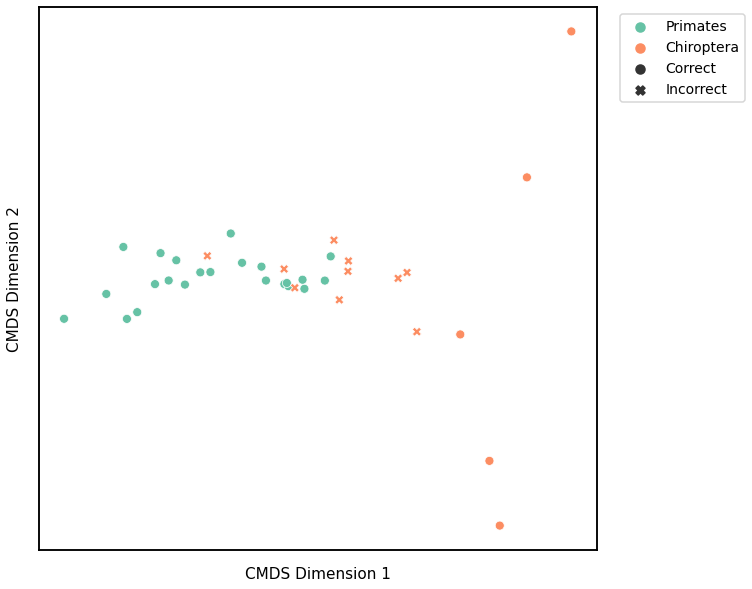

ARI: 0.19552068007193069
<AxesSubplot:xlabel='CMDS Dimension 1', ylabel='CMDS Dimension 2'>
_images/mami_clustering_26_2.png

Laplacian Spectral Distance

# HIDE CELL
# cluster dissimilarity matrix
lap_gm_embedding, lap_gm_pred = cluster_dissim(scaled_lap_dissim, y, method="gmm", n_components=2)
lap_gm, lap_gm_pred = construct_df(lap_gm_embedding, labels, y, lap_gm_pred)

# calculate accuracy and ARI
lap_gm_score = accuracy_score(y, lap_gm_pred)
lap_gm_ari = adjusted_rand_score(y, lap_gm_pred)

print(f"Accuracy: {lap_gm_score}")
print(f"ARI: {lap_gm_ari}")

# plot clustering
fig = plot_clustering(labels, 'gmm', data=lap_gm)
fig.legend(bbox_to_anchor=(1.275, 1))
Accuracy: 0.7894736842105263
ARI: 0.31234614193253885
<matplotlib.legend.Legend at 0x7fd18364b670>
_images/mami_clustering_28_2.png

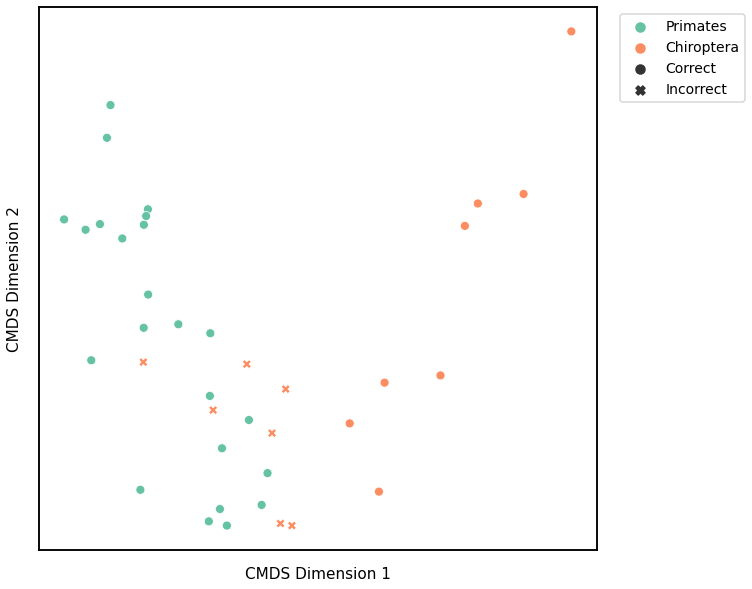

Node Degree

# HIDE CELL
# cluster dissimilarity matrix
nodedeg_gm_embedding, nodedeg_gm_pred = cluster_dissim(scaled_nodedeg_dissim, y, method="gmm", n_components=2)
nodedeg_gm, nodedeg_gm_pred = construct_df(nodedeg_gm_embedding, labels, y, nodedeg_gm_pred)

# calculate accuracy and ARI
nodedeg_gm_score = accuracy_score(y, nodedeg_gm_pred)
nodedeg_gm_ari = adjusted_rand_score(y, nodedeg_gm_pred)

print(f"Accuracy: {nodedeg_gm_score}")
print(f"ARI: {nodedeg_gm_ari}")

# plot clustering
plot_clustering(labels, 'gmm', data=nodedeg_gm)
Accuracy: 0.8157894736842105
ARI: 0.37900307341596956
<AxesSubplot:xlabel='CMDS Dimension 1', ylabel='CMDS Dimension 2'>
_images/mami_clustering_30_2.png

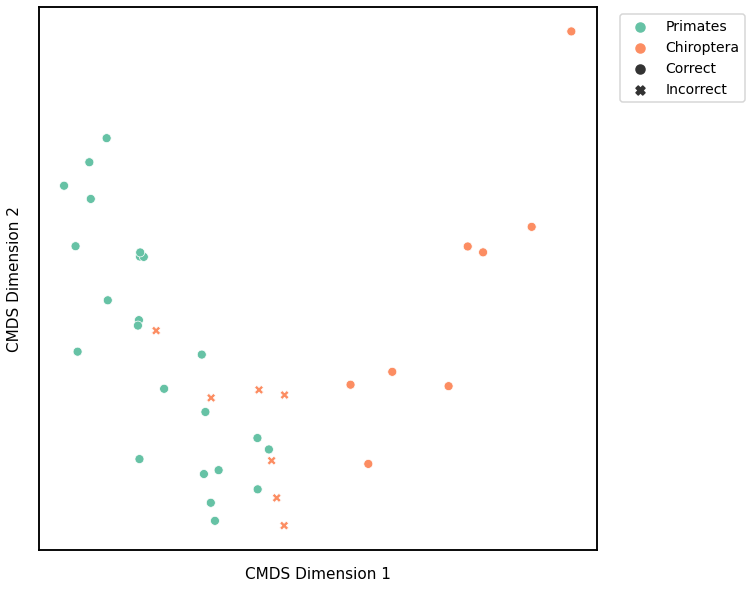

Node Strength

# HIDE CELL
# cluster dissimilarity matrix
nodestr_gm_embedding, nodestr_gm_pred = cluster_dissim(scaled_nodestr_dissim, y, method="gmm", n_components=2)
nodestr_gm, nodestr_gm_pred = construct_df(nodestr_gm_embedding, labels, y, nodestr_gm_pred)

# calculate accuracy and ARI
nodestr_gm_score = accuracy_score(y, nodestr_gm_pred)
nodestr_gm_ari = adjusted_rand_score(y, nodestr_gm_pred)

print(f"Accuracy: {nodestr_gm_score}")
print(f"ARI: {nodestr_gm_ari}")

# plot clustering
plot_clustering(labels, 'gmm', data=nodestr_gm)
Accuracy: 0.8157894736842105
ARI: 0.37900307341596956
<AxesSubplot:xlabel='CMDS Dimension 1', ylabel='CMDS Dimension 2'>
_images/mami_clustering_32_2.png

Edge Weight

# HIDE CELL
# cluster dissimilarity matrix
edgeweight_gm_embedding, edgeweight_gm_pred = cluster_dissim(scaled_edgeweight_dissim, y, method="gmm", n_components=2)
edgeweight_gm, edgeweight_gm_pred = construct_df(edgeweight_gm_embedding, labels, y, edgeweight_gm_pred)

# calculate accuracy and ARI
edgeweight_gm_score = accuracy_score(y, edgeweight_gm_pred)
edgeweight_gm_ari = adjusted_rand_score(y, edgeweight_gm_pred)

print(f"Accuracy: {edgeweight_gm_score}")
print(f"ARI: {edgeweight_gm_ari}")

# plot clustering
fig = plot_clustering(labels, 'gmm', data=edgeweight_gm)
fig.legend(bbox_to_anchor=(1.275, 1))
Accuracy: 0.6578947368421053
ARI: 0.0647883980139417
<matplotlib.legend.Legend at 0x7fd183d461c0>
_images/mami_clustering_34_2.png

Latent Distribution Test

# HIDE CELL
# cluster dissimilarity matrix
scaled_latent_dissim[scaled_latent_dissim < 0] = 0
latent_gm_embedding, latent_gm_pred = cluster_dissim(scaled_latent_dissim, y, method="gmm", n_components=2)
latent_gm, latent_gm_pred = construct_df(latent_gm_embedding, labels, y, latent_gm_pred)

# calculate accuracy and ARI
latent_gm_score = accuracy_score(y, latent_gm_pred)
latent_gm_ari = adjusted_rand_score(y, latent_gm_pred)

print(f"Accuracy: {latent_gm_score}")
print(f"ARI: {latent_gm_ari}")

# plot clustering
mami_latent_gmm_fig = plot_clustering(labels, 'gmm', data=latent_gm)
mami_latent_gmm_fig.legend(bbox_to_anchor=(1.275, 1))

glue('mami_latent_gmm', mami_latent_gmm_fig, display=False)
Accuracy: 0.8157894736842105
ARI: 0.38031481669544026
_images/mami_clustering_36_2.png

K-Means

Similar to GMM, we first use classical multidimensional scaling to embed the dissimilarity matrices into a 2-dimensional space, then use KMeans to predict the genotypes of each point. The clusters are shown in the scatterplot below, and the colors represent the true genotypes and the shapes (O or X) indicate whether or not we made correct predictions.

For each kernel, we report the raw accuracy score, the number of correct predictions divided by the total number of samples, and the adjusted rand index.

Density

# HIDE CELL
# cluster dissimilarity matrix
density_km_embedding, density_km_pred = cluster_dissim(scaled_density_dissim, y, method="kmeans", n_components=2)
density_km, density_km_pred = construct_df(density_km_embedding, labels, y, density_km_pred)

# calculate accuracy and ARI
density_km_score = accuracy_score(y, density_km_pred)
density_km_ari = adjusted_rand_score(y, density_km_pred)

print(f"Accuracy: {density_km_score}")
print(f"ARI: {density_km_ari}")

# plot clustering
plot_clustering(labels, 'kmeans', data=density_km)
Accuracy: 0.868421052631579
ARI: 0.5302001190751023
<AxesSubplot:xlabel='CMDS Dimension 1', ylabel='CMDS Dimension 2'>

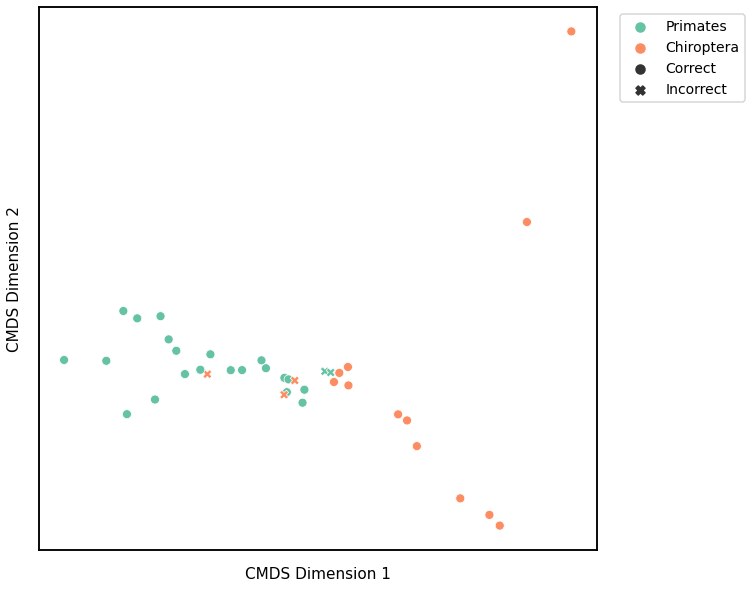

_images/mami_clustering_38_2.png

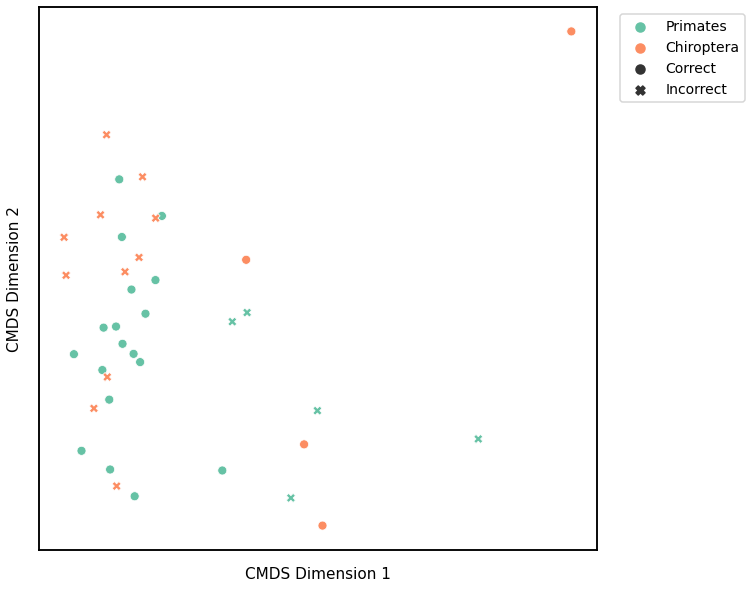

Average Edge Weight

# HIDE CELL
# cluster dissimilarity matrix
avgedgeweight_km_embedding, avgedgeweight_km_pred = cluster_dissim(scaled_avgedgeweight_dissim, y, method='kmeans', n_components=2)
avgedgeweight_km, avgedgeweight_km_pred = construct_df(avgedgeweight_km_embedding, labels, y, avgedgeweight_km_pred)

# calculate accuracy and ARI
avgedgeweight_km_score = accuracy_score(y, avgedgeweight_km_pred)
avgedgeweight_km_ari = adjusted_rand_score(y, avgedgeweight_km_pred)

print(f"Accuracy: {avgedgeweight_km_score}")
print(f"ARI: {avgedgeweight_km_ari}")

# plot clustering
plot_clustering(labels, 'kmeans', data=avgedgeweight_km)
Accuracy: 0.5789473684210527
ARI: -0.006213200611561108
<AxesSubplot:xlabel='CMDS Dimension 1', ylabel='CMDS Dimension 2'>
_images/mami_clustering_40_2.png

Average of the Adjacency Matrix

# HIDE CELL
# cluster dissimilarity matrix
avgadjmat_km_embedding, avgadjmat_km_pred = cluster_dissim(scaled_avgadjmat_dissim, y, method='kmeans', n_components=2)
avgadjmat_km, avgadjmat_km_pred = construct_df(avgadjmat_km_embedding, labels, y, avgadjmat_km_pred)

# calculate accuracy and ARI
avgadjmat_km_score = accuracy_score(y, avgadjmat_km_pred)
avgadjmat_km_ari = adjusted_rand_score(y, avgadjmat_km_pred)

print(f"Accuracy: {avgadjmat_km_score}")
print(f"ARI: {avgadjmat_km_ari}")

# plot clustering
plot_clustering(labels, 'kmeans', data=avgadjmat_km)
Accuracy: 0.868421052631579
ARI: 0.5302001190751023
<AxesSubplot:xlabel='CMDS Dimension 1', ylabel='CMDS Dimension 2'>

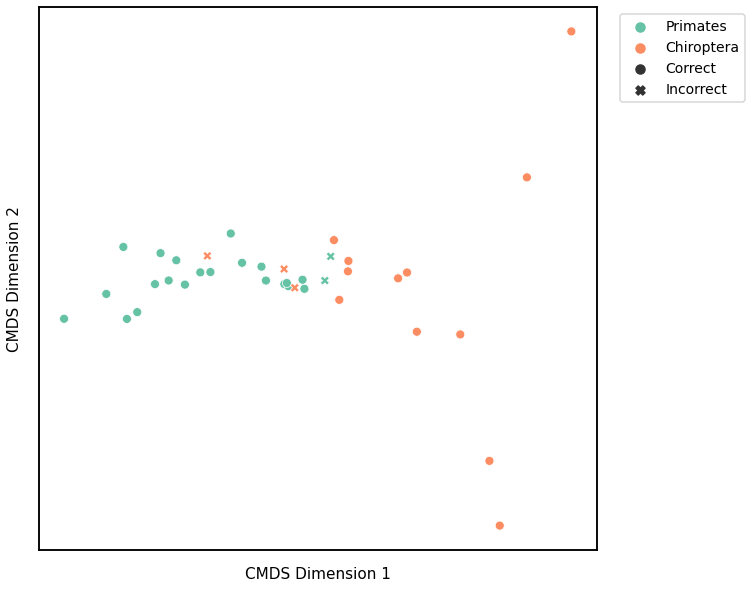

_images/mami_clustering_42_2.png

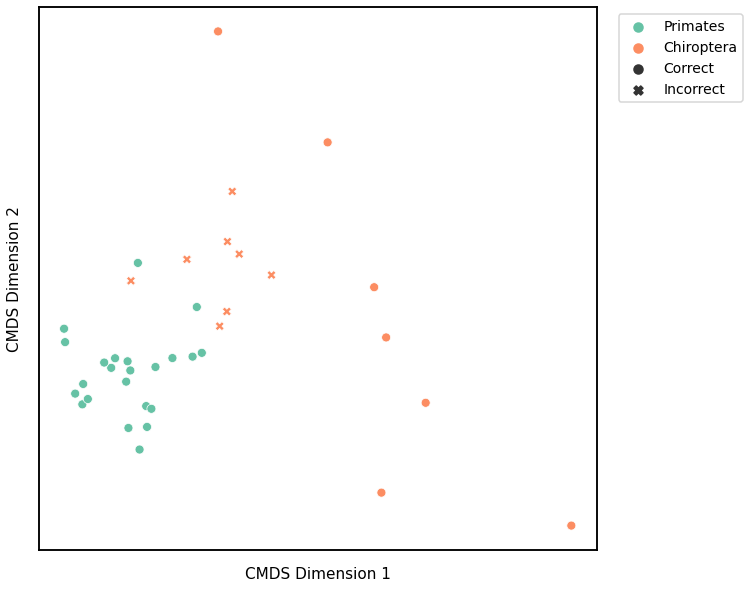

Laplacian Spectral Distance

# HIDE CELL
# cluster dissimilarity matrix
lap_km_embedding, lap_km_pred = cluster_dissim(scaled_lap_dissim, y, method="gmm", n_components=2)
lap_km, lap_km_pred = construct_df(lap_km_embedding, labels, y, lap_km_pred)

# calculate accuracy and ARI
lap_km_score = accuracy_score(y, lap_km_pred)
lap_km_ari = adjusted_rand_score(y, lap_km_pred)

print(f"Accuracy: {lap_km_score}")
print(f"ARI: {lap_km_ari}")

# plot clustering
fig = plot_clustering(labels, 'gmm', data=lap_km)
fig.legend(bbox_to_anchor=(1.275, 1))
Accuracy: 0.7894736842105263
ARI: 0.31234614193253885
<matplotlib.legend.Legend at 0x7fd1a3bf3820>
_images/mami_clustering_44_2.png

Node Degree

# HIDE CELL
# cluster dissimilarity matrix
nodedeg_km_embedding, nodedeg_km_pred = cluster_dissim(scaled_nodedeg_dissim, y, method='kmeans', n_components=2)
nodedeg_km, nodedeg_km_pred = construct_df(nodedeg_km_embedding, labels, y, nodedeg_km_pred)

# calculate accuracy and ARI
nodedeg_km_score = accuracy_score(y, nodedeg_km_pred)
nodedeg_km_ari = adjusted_rand_score(y, nodedeg_km_pred)

print(f"Accuracy: {nodedeg_km_score}")
print(f"ARI: {nodedeg_km_ari}")

# plot clustering
plot_clustering(labels, 'kmeans', data=nodedeg_km)
Accuracy: 0.8157894736842105
ARI: 0.37900307341596956
<AxesSubplot:xlabel='CMDS Dimension 1', ylabel='CMDS Dimension 2'>
_images/mami_clustering_46_2.png

Node Strength

# HIDE CELL
# cluster dissimilarity matrix
nodestr_km_embedding, nodestr_km_pred = cluster_dissim(scaled_nodestr_dissim, y, method='kmeans', n_components=2)
nodestr_km, nodestr_km_pred = construct_df(nodestr_km_embedding, labels, y, nodestr_km_pred)

# calculate accuracy and ARI
nodestr_km_score = accuracy_score(y, nodestr_km_pred)
nodestr_km_ari = adjusted_rand_score(y, nodestr_km_pred)

print(f"Accuracy: {nodestr_km_score}")
print(f"ARI: {nodestr_km_ari}")

# plot clustering
plot_clustering(labels, 'kmeans', data=nodestr_km)
Accuracy: 0.8157894736842105
ARI: 0.37900307341596956
<AxesSubplot:xlabel='CMDS Dimension 1', ylabel='CMDS Dimension 2'>
_images/mami_clustering_48_2.png

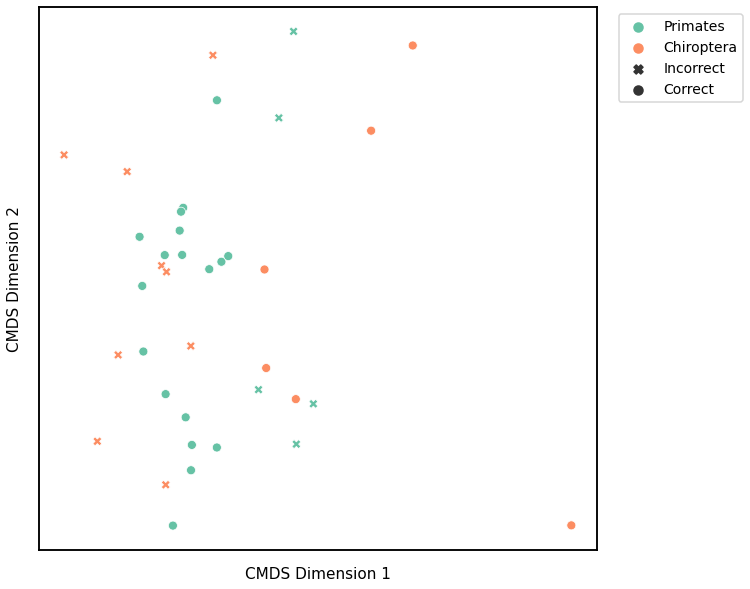

Edge Weight

# HIDE CELL
# cluster dissimilarity matrix
edgeweight_km_embedding, edgeweight_km_pred = cluster_dissim(scaled_edgeweight_dissim, y, method='kmeans', n_components=2)
edgeweight_km, edgeweight_km_pred = construct_df(edgeweight_km_embedding, labels, y, edgeweight_km_pred)

# calculate accuracy and ARI
edgeweight_km_score = accuracy_score(y, edgeweight_km_pred)
edgeweight_km_ari = adjusted_rand_score(y, edgeweight_km_pred)

print(f"Accuracy: {edgeweight_km_score}")
print(f"ARI: {edgeweight_km_ari}")

# plot clustering
fig = plot_clustering(labels, 'kmeans', data=edgeweight_km)
fig.legend(bbox_to_anchor=(1.275, 1))
Accuracy: 0.631578947368421
ARI: 0.04134807383236741
<matplotlib.legend.Legend at 0x7fd193c3ba30>
_images/mami_clustering_50_2.png

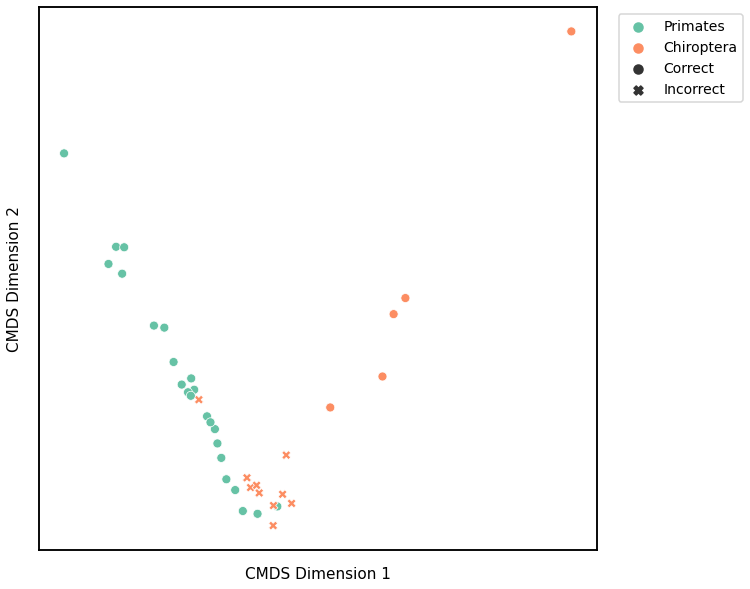

Latent Distribution Test

# HIDE CELL
# cluster dissimilarity matrix
scaled_latent_dissim[scaled_latent_dissim < 0] = 0
latent_km_embedding, latent_km_pred = cluster_dissim(scaled_latent_dissim, y, method='kmeans', n_components=2)
latent_km, latent_km_pred = construct_df(latent_km_embedding, labels, y, latent_km_pred)

# calculate accuracy and ARI
latent_km_score = accuracy_score(y, latent_km_pred)
latent_km_ari = adjusted_rand_score(y, latent_km_pred)

print(f"Accuracy: {latent_km_score}")
print(f"ARI: {latent_km_ari}")

# plot clustering
mami_latent_km_fig = plot_clustering(labels, 'kmeans', data=latent_km)
mami_latent_km_fig.legend(bbox_to_anchor=(1.275, 1))

glue('mami_latent_km', mami_latent_km_fig, display=False)
Accuracy: 0.7368421052631579
ARI: 0.19552068007193069
_images/mami_clustering_52_2.png

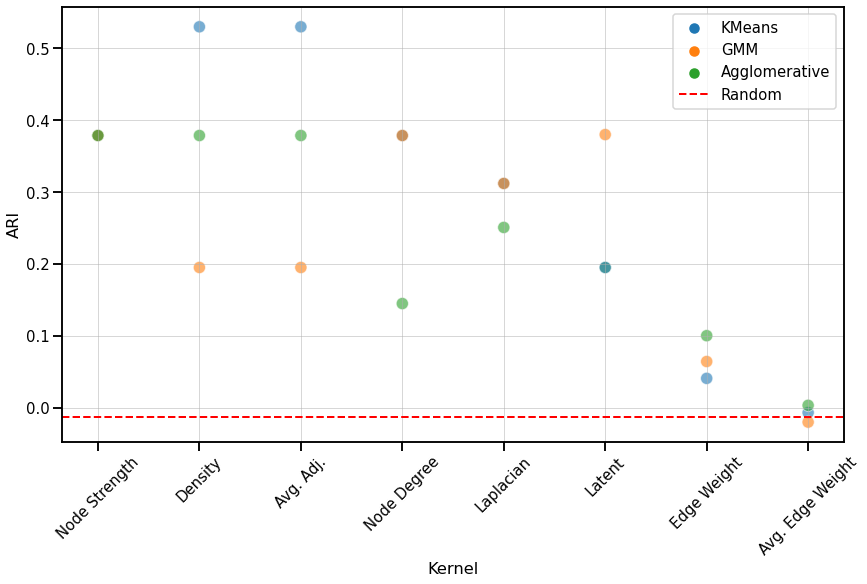

ARI Plot

We use the adjusted rand index (ARI) to compare the performace of each clustering algorithm on each kernel. The ARI values are visualized with a scatter plot below, and the colors represent the different clustering algorithms. The kernels are sorted by the average ARI value of the three clustering algorithms, from highest to lowest. We also compute the ARI values for each clustering algorithm for a random matrix, which is indicated by the red dash line and should be close to 0.

# HIDE CODE
from graspologic.utils import symmetrize

# construct symmetric random matrix with zero diagonal
np.random.seed(3)
scaled_random = np.random.rand(len(graphs), len(graphs))
scaled_random = symmetrize(scaled_random)

# agglomerative clustering
random_linkage_matrix, random_pred = cluster_dissim(scaled_random, y, method="agg", n_components=2)
random_pred = remap_labels(y, random_pred)
random_agg_score = accuracy_score(y, random_pred)
random_agg_ari = adjusted_rand_score(y, random_pred)

# GMM
random_gm_embedding, random_gm_pred = cluster_dissim(scaled_random, y, method="gmm", n_components=2)
random_gm, random_gm_pred = construct_df(random_gm_embedding, labels, y, random_gm_pred)
random_gm_score = accuracy_score(y, random_gm_pred)
random_gm_ari = adjusted_rand_score(y, random_gm_pred)

# K-Means
random_km_embedding, random_km_pred = cluster_dissim(scaled_random, y, method="kmeans", n_components=2)
random_km, random_km_pred = construct_df(random_km_embedding, labels, y, random_km_pred)
random_km_score = accuracy_score(y, random_km_pred)
random_km_ari = adjusted_rand_score(y, random_km_pred)

random_avg_ari_val = (random_agg_ari + random_gm_ari + random_km_ari) / 3
# HIDE CODE
kernels = ['Density', 'Avg. Edge Weight', 'Avg. Adj.', 'Laplacian', 'Node Degree', 'Node Strength', \
    'Edge Weight', 'Latent']
kernels_df = [kernel for kernel in kernels for i in range(3)]
agg_ari = [density_agg_ari, avgedgeweight_agg_ari, avgadjmat_agg_ari, lap_agg_ari, nodedeg_agg_ari, \
    nodestr_agg_ari, edgeweight_agg_ari, latent_agg_ari]
gm_ari = [density_gm_ari, avgedgeweight_gm_ari, avgadjmat_gm_ari, lap_gm_ari, nodedeg_gm_ari, \
    nodestr_gm_ari, edgeweight_gm_ari, latent_gm_ari]
km_ari = [density_km_ari, avgedgeweight_km_ari, avgadjmat_km_ari, lap_km_ari, nodedeg_km_ari, \
    nodestr_km_ari, edgeweight_km_ari, latent_km_ari]

ari_vals = np.vstack((np.array(agg_ari), np.array(gm_ari), np.array(km_ari)))
ari_vals = np.ravel(ari_vals.T)
algos = ['Agglomerative', 'GMM', 'KMeans'] * len(agg_ari)

ari_df = pd.DataFrame(list(zip(kernels_df, ari_vals, algos)), columns=["Kernel", "ARI", "Algorithm"])

avg_ari_vals = (np.array(agg_ari) + np.array(gm_ari) + np.array(km_ari)) / 3
avg_ari_vals = [val for val in avg_ari_vals for i in range(3)]
ari_df["Average"] = avg_ari_vals
ari_df = ari_df.sort_values(by=['Average'], ascending=False)

mami_cluster_fig, ax = plt.subplots(1,1, figsize=(14, 8), facecolor='w')
sns.set_context("talk", font_scale=0.9)
sns.scatterplot(x="Kernel", y="ARI", hue="Algorithm", data=ari_df, alpha=0.6, s=150)
plt.axhline(y=random_avg_ari_val, color='r', linestyle='--', linewidth=2, label='Random')
plt.legend()
plt.xticks(rotation=45)
plt.grid(linewidth=0.5)

glue("mami_cluster", mami_cluster_fig, display=False)
_images/mami_clustering_55_1.png

Fig. 6 Scatter plot comparing the ARI values of each clustering algorithm for every kernel, from highest to lowest based on the average ARI value. Most kernels perform better than chance.

We observe similar trends to those of the discriminability plot for unmatched networks, where kernels that use global properties of the network perform better than node-wise or edge-wise kernels, with the exception of the Node strength kernel. There is no one clustering algorithm that performs consistently well, suggesting that the dissimilarity matrix is the main determining factor in its clustering performance rather than the algorithm itself.
